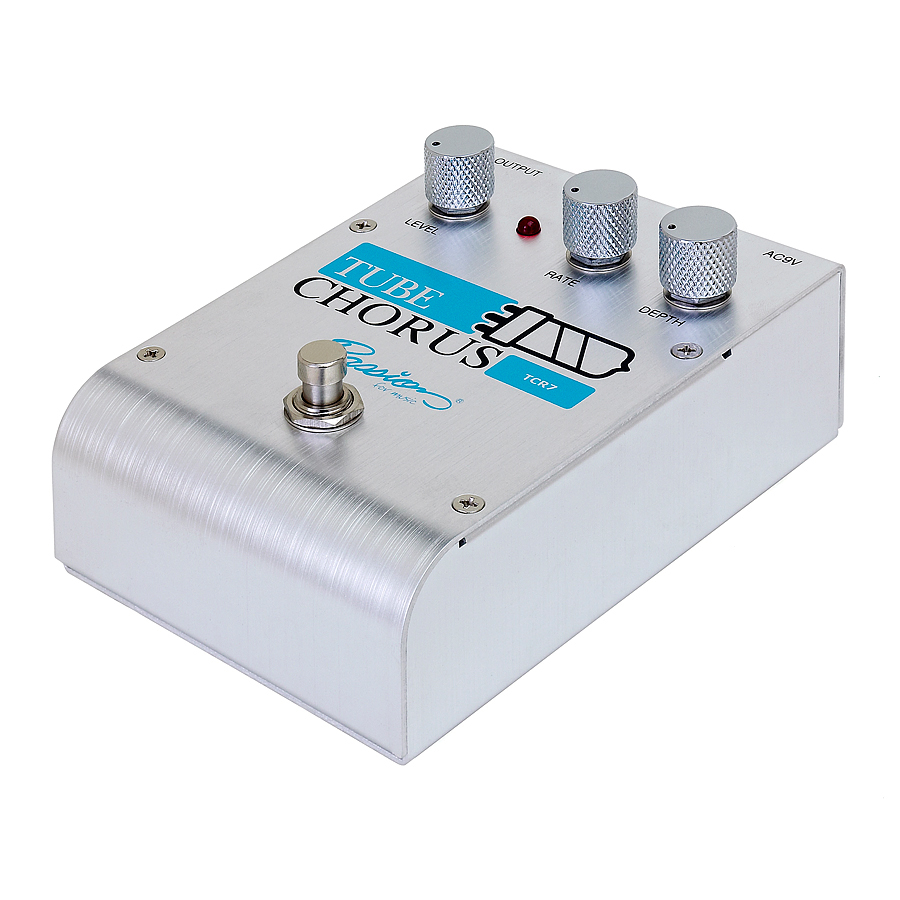

| TCR-7 |
 TUBE CHORUS |
| |
|
|
|
 |
|
| Control |
|
Level, Rate, Depth |
|
| Power |
|
AC9V 850mA Adaptor |
|
| Max, Current Draw |
|
480mA (6.5VA) |
|
| Tube Type |
|
12AX7 (ECC83) |
|
| Input Impedance |
|
470K ohm |
|
| Output Impedance |
|
10K ohm |
|
| Maximum input level |
|
0dBm(100hz) -10dBm(1Khz) |
|
| Dimensions |
|
96(W)*60(H)*140(D)mm |
|
| Weight |
|
330g |
|
|
|
 |
|
|
