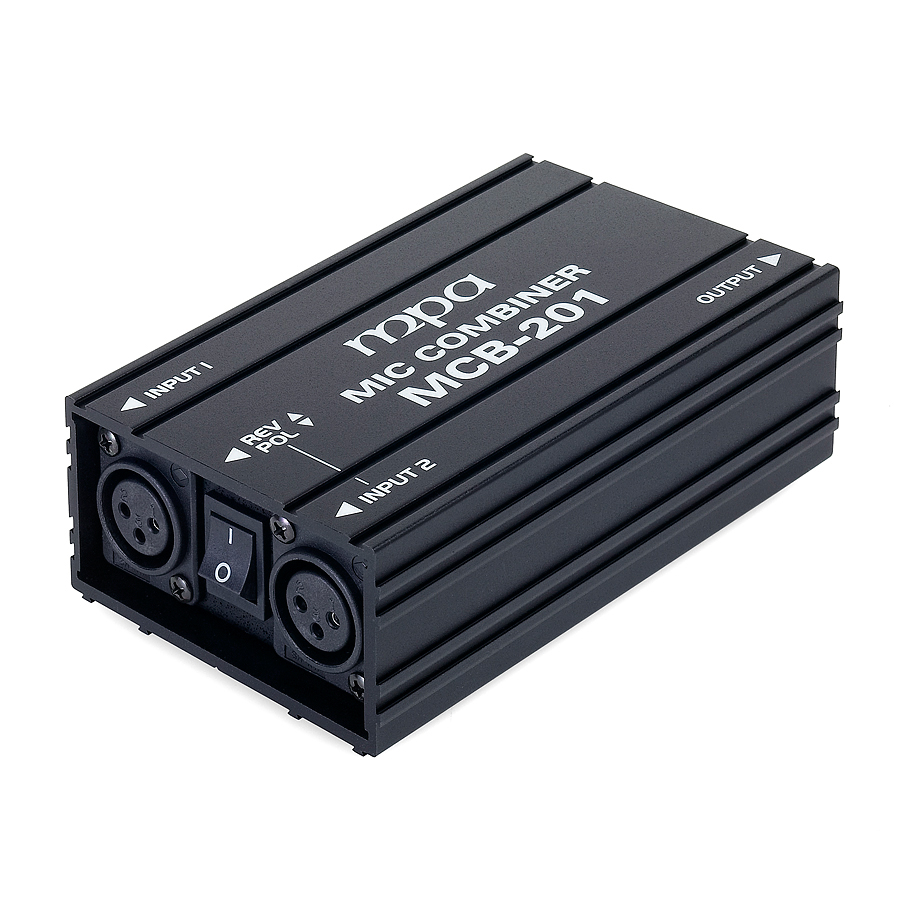

MCB-201
MICROPHONE COMBINER



INPUT IMPEDANCE Greater than 235 ohm @ 1.0 kHz.
Greater than 285ohm @ 10 kHz.
Nominal source impedance is 150 ohm.
OUTPUT IMPEDANCE Less than 180 ohm @ 1.0 kHz.
Less than 185 ohm @ 10 kHz.
TOTAL HARMONIC DISTORTION : Less than .03% 20 Hz-20 kHz @ -30 dBv output.
Less than .1% 30 Hz-20 kHz @ -15 dBv output.
Less than .25% 20 Hz-20 kHz @ -15 dBv output.
PHASE RESPONSE Less than -13 degrees
@ 20 kHz (ref. 1.0 kHz).
RISE TIME Less than 2.4 microseconds
(2.0 kHz square wave, 10%-90%).
DIMENSION 81mm(W) x 44mm(H) x 130mm(D)
WEIGHT 450g
