| Gain |
|
1 kz, ±3 dB |
|
| Frequency Response (ref 1 kz) |
|
20 Hz to 20 kHz, ±2 dB |
|
| Input Impedance |
|
Balanced Lo Mic 2 kΩ |
|
| Output Impedance |
|
Balanced Lo Mic 150 Ω |
|
| Input Clipping Levels (Min.) |
|
Balanced Lo Impedance Mic -22 dB |
|
| Output Clipping Levels (Min.) |
|
Balanced Lo Impedance Mic -20 dBV |
|
| Distortion Outputs (1 kHz) |
|
Balanced Lo Impedance Mic Less than 1%, -34 dBV |
|
| Phantom Power Voltage |
|
48V selectable |
|
| Input Power |
|
DC 12V 500mA (Adaptor Included) |
|
| Dimension (WxHxD) |
|
483 x 44.5 x 130(mm) |
|
| Weight |
|
1,620g
|
|

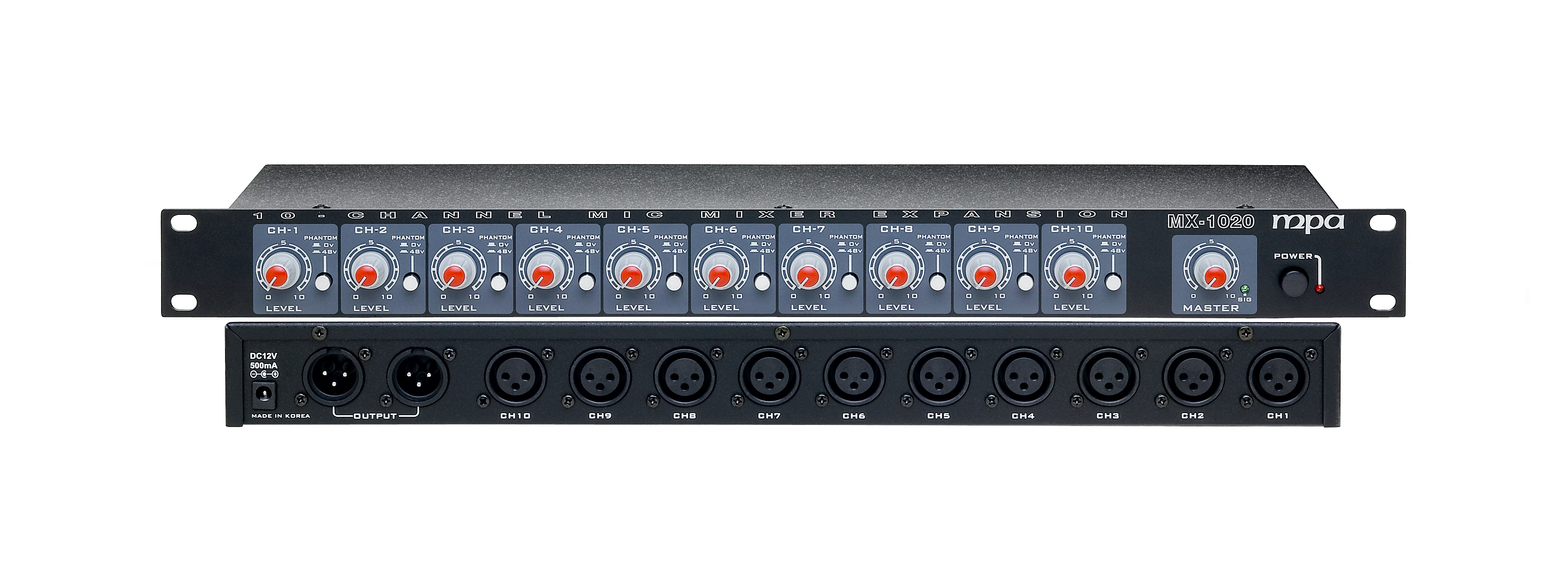

10-CH MICROPHONE MIXER
