| INPUT IMPEDANCE |
|
Greater than 570 ohm @ 1.0 kHz.
Greater than 570 ohm @ 10 kHz. |
|
| Nominal source impedance is 150 ohm. |
|
| OUTPUT IMPEDANCE |
|
Less than 255 ohm @ 1.0 kHz.
Less than 270 ohm @ 10 kHz. |
|
| TOTAL HARMONIC DISTORTION : |
|
Less than .03% 20 Hz-20 kHz @ -30 dBv output.
Less than .1% 30 Hz-20 kHz @ -15 dBv output.
Less than .25% 20 Hz-20 kHz @ -15 dBv output. |
|
| PHASE RESPONSE |
|
Less than -13 degrees
@ 20 kHz (ref. 1.0 kHz). |
|
| RISE TIME |
|
Less than 2.4 microseconds
(2.0 kHz square wave, 10%-90%). |
|
| DIMENSION |
|
483mm(W) x 44.5mm(H) x 95mm(D) |
|
| WEIGHT |
|
1,300g |
|

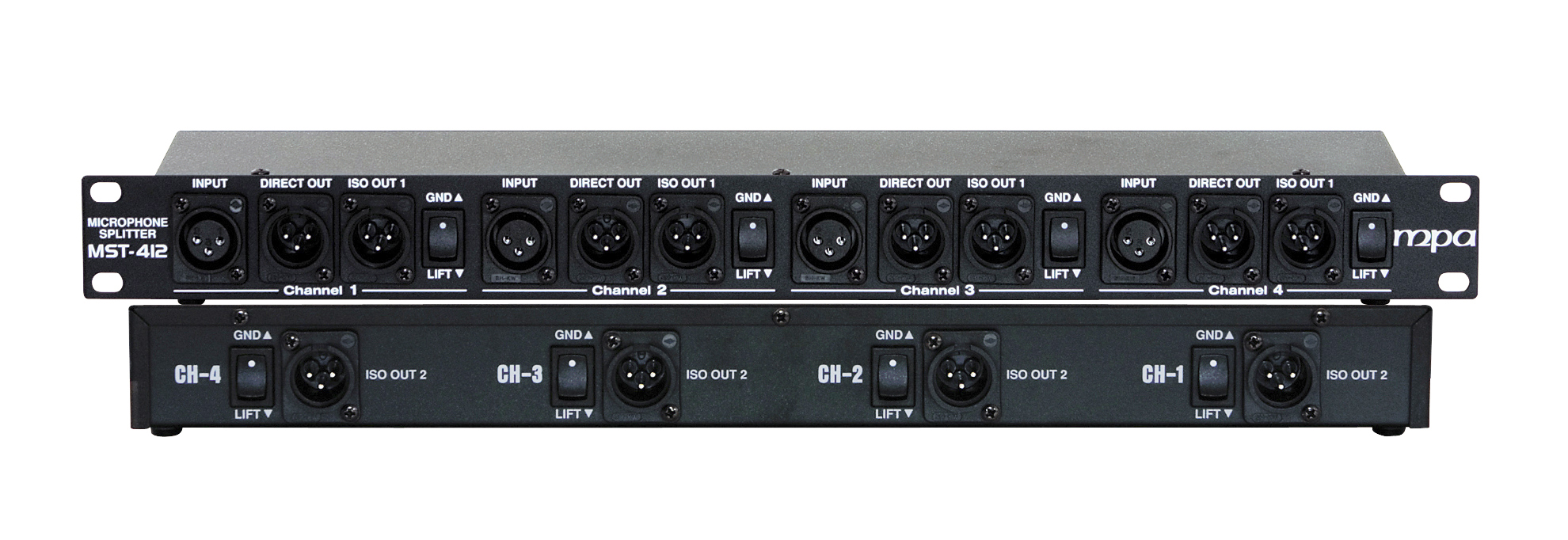

4-CH MICROPHONE SPLITTER
