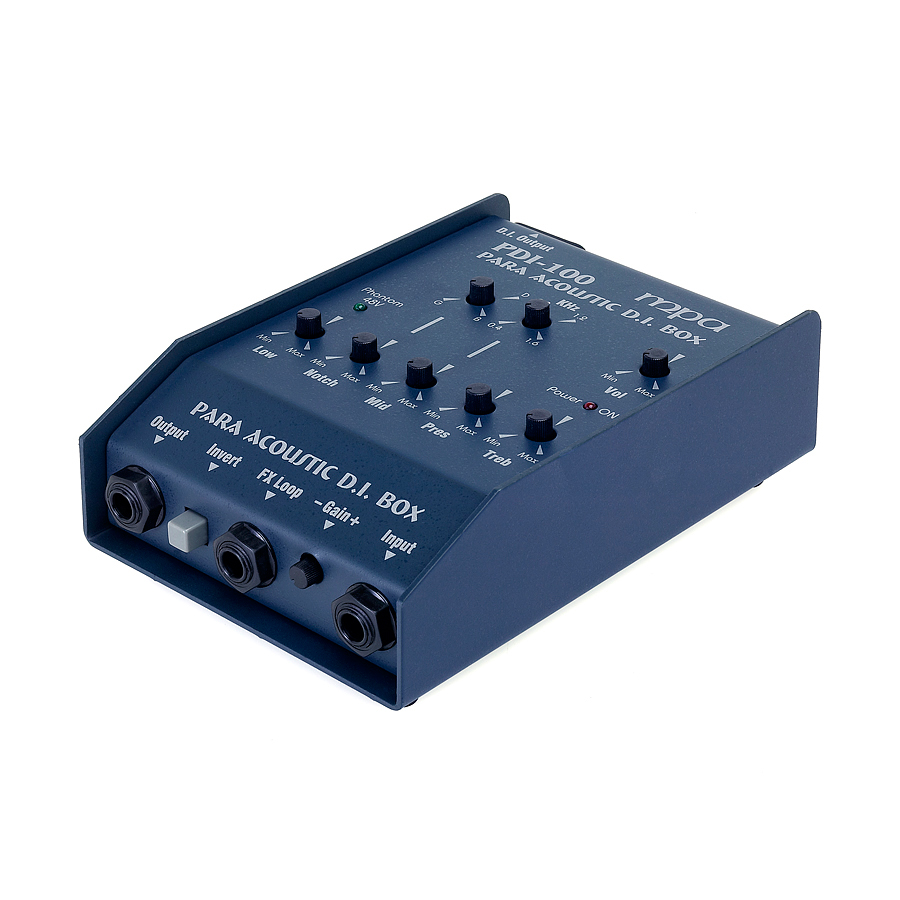

| PDI-100 |
 PARA ACOUSTIC DIRECT BOX |
| |
|
|
|
 |
|
| Input Impedance |
|
10M ohms |
|
| Output Impedance |
|
600 Ohms |
|
| EQ |
|
Low : +/-12dB@85Hz
Notch : +/-6dB@98-247Hz
Midrange : +/-12dB@400Hz-1.6kHz
Presence : +/-6dB@5kHz
Treble : +/-12dB@10kHz |
|
| Low Cut Filter |
|
Fixed, 12dB/oct.@35Hz |
|
| Gain |
|
from 3dB-24dB |
|
| Signal to Noise |
|
-88dB, unweighted |
|
| FX Send Impedance |
|
8.2K Ohms
|
|
| FX Return Impedance |
|
47K Ohms |
|
| Battery Type |
|
Single 9V |
|
| External Power |
|
30-48V phantom power |
|
| Size(mm) |
|
100(W) x 146(D) x 53(H)
|
|
| Weight |
|
685g
|
|
|
|
 |
|
|
