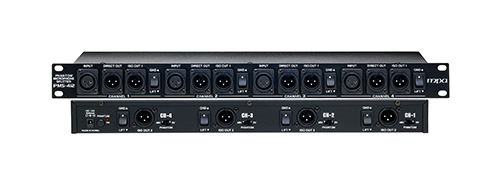

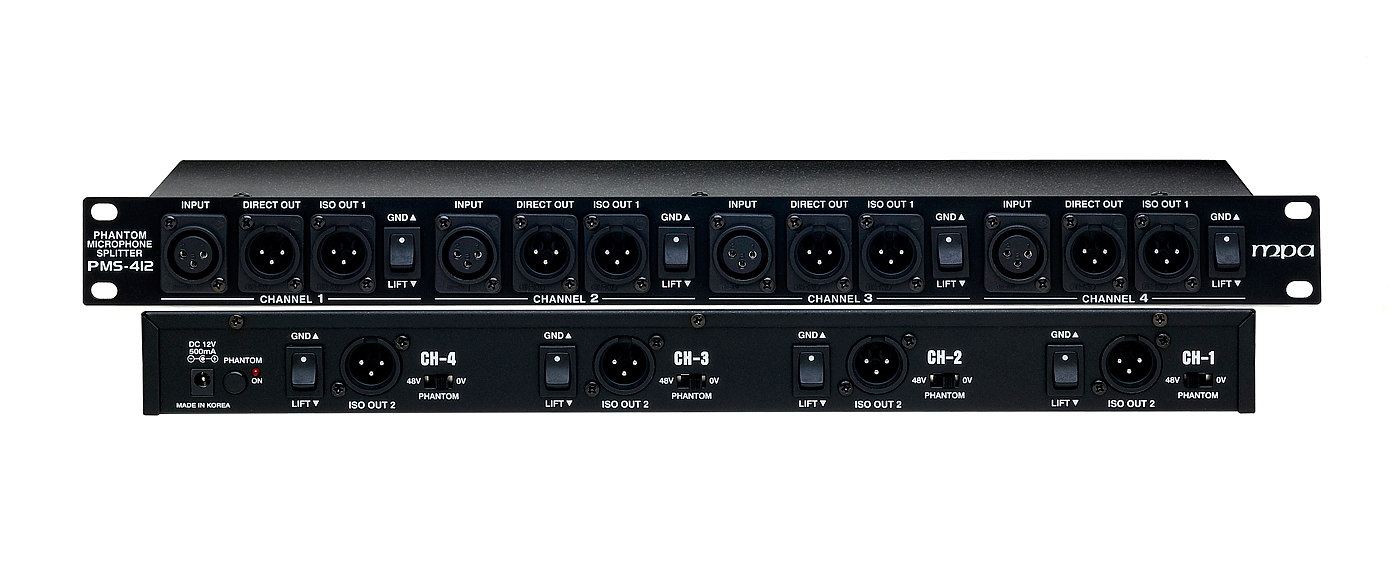

PMS-412
4-CH PHANTOM MICROPHONE SPLITTER



INPUT IMPEDANCE Greater than 570 ohm @ 1.0 kHz.
Greater than 570 ohm @ 10 kHz.
Nominal source impedance is 150 ohm.
OUTPUT IMPEDANCE Less than 255 ohm @ 1.0 kHz.
Less than 270 ohm @ 10 kHz.
TOTAL HARMONIC DISTORTION : Less than .03% 20 Hz-20 kHz @ -30 dBv output.
Less than .1% 30 Hz-20 kHz @ -15 dBv output.
Less than .25% 20 Hz-20 kHz @ -15 dBv output.
PHASE RESPONSE Less than -13 degrees
@ 20 kHz (ref. 1.0 kHz).
RISE TIME Less than 2.4 microseconds
(2.0 kHz square wave, 10%-90%).
Phantom Voltage 48V
Input Power 12V DC (adapter included)
DIMENSION 483mm(W) x 44.5mm(H) x 95mm(D)
WEIGHT 1,410g
