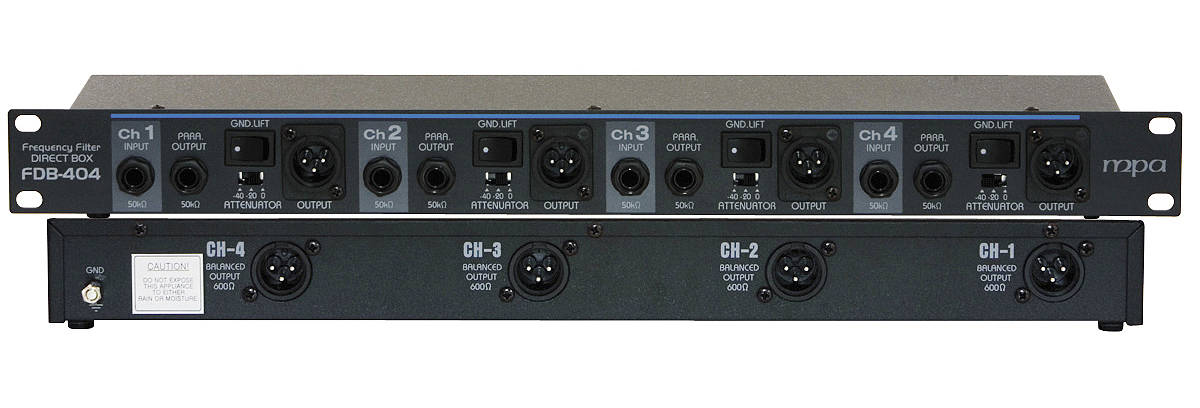

| FDB-404 |
 4-CH PASSIVE DIRECT BOX |
| |
|
|
|
 |
|
| Frequency Response (ref 1 kz) |
|
high to low impedance : 15 - 30,000 Hz
Low to high impedance : 30 - 20,000 Hz |
|
| Inputs |
|
max. Input voltage :
32v (corresponds to 125W at 8Ω or 250W at 4Ω)
1/4" jack - - - - - - - - 50㏀, unbalanced |
|
| Outputs |
|
XLR 600Ω, balanced Transmission ratio 10 : 1
|
|
| Attenuator |
|
0, -20, -40 dB |
|
| Admissible ambient |
|
Temperature 0~40˚c |
|
| Dimensions (WxHxD) |
|
483 x 44.5 x 95 mm |
|
| Weight |
|
1,250g |
|
|
|
 |
|
|
